Product Details:
|
| Material: | Alloy 600 | Application: | Oil And GSG,FGD, SWRO, Water Treatment |
|---|---|---|---|
| Class: | 150LBS-2500LBS | Color: | Silver |
| Certificate: | API,ISO,SGS | Package: | Carton, Wooden Cases |
| Delivery Time: | 7- 15 Days | Heat Treatment: | In-line Bright Annealing |
| Payment Term: | T/T Etc. | Flange Standard: | ASTM A105N |
| Highlight: | forged steel flanges,spectacle blind flange |
||
Detailed Product Description

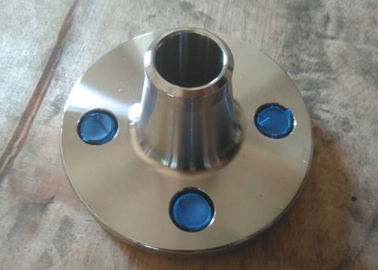

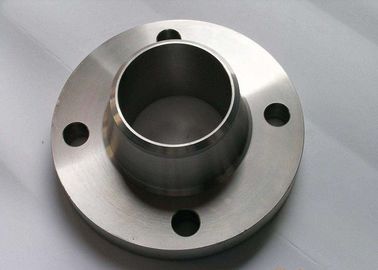

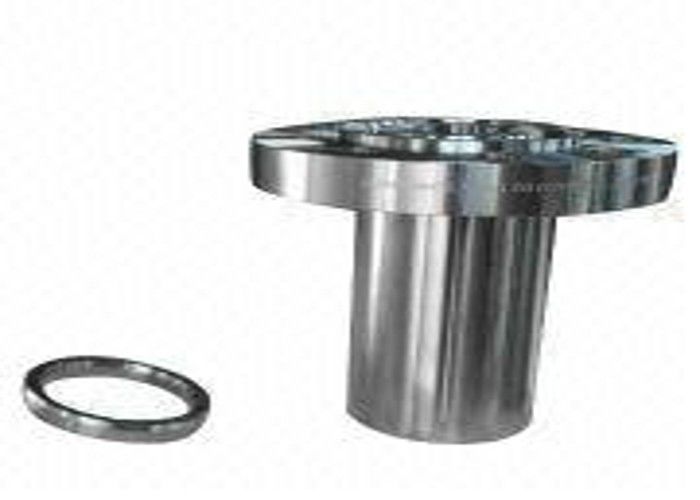

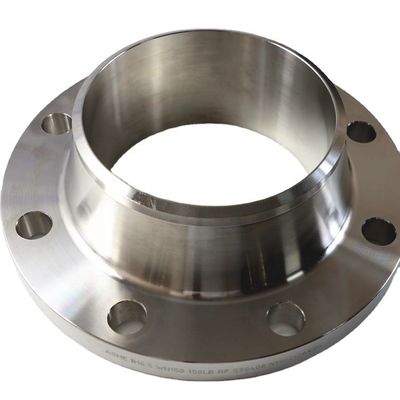

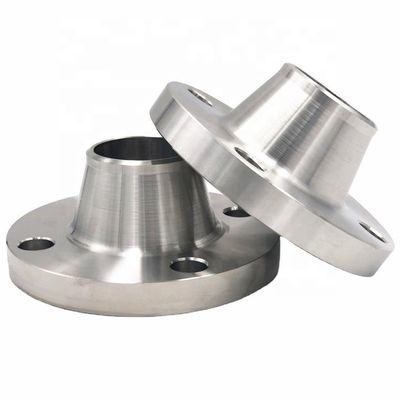

Nipoflange is used in the pipe industry like a weldolet or a nipolet for a 90° branch connection.
A Nipoflange is a combination of weldolet, nipolet and flange.
Two different pipe branch connectionsOn the run pipe side a nipoflange is designed like a weldolet.
That means the branch connection on the run pipe side is a welding connection. On the other side there
it has a flange connection. The flange connection can be designed according to customers requirements
(acc. To DIN or ANSI).
| Product Name | Nipo Flange |
| Standard | ASME/ANSI B16.5/16.36/16.47A/16.47B/B16.48, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Type | Special Flange: According to the drawing Picture |
| Materials |
Copper Nickel Alloy: ASTM B466 UNS C70600, ASTM B466 UNS C71500, CUNI90/10, CUNI70/30 Nickel Alloy: ASTM/ASME S/B366 UNS N08020, N04400, N06600, N06625, N08800, N08810, N08825, N10276,N10665,N10675 Carbon Steel: ASTM/ASME S/A105, ASTM/ASME S/A350 LF2, ASTM/ASME S/A694/A694M, F42, F52, F56, F60, F65, F70.... ASTM A516 GRADE 70 |
| Dimension | (150#,300#,600#): DN15-DN1500 900# : DN15-DN1000 1500#: DN15-DN600 2500#:D N15-DN300 |
| Test | Chemical Component Analysis, Mechanical Properties, Metallurgical Analysis, Impact Testing, Hardness testing , Ferrite Testing, Inter granular corrosion testing, X-ray Inspection (RT), PMI, PT, UT, HIC & SSC test, etc. or as your requirement |
| Certificates | API, ISO, SGS, BV, CE, PED, KOC, CCRC, PDO, CH2M HILL and etc. |
| Advantages |
1. Abundant stock and prompt delivery 2. Reasonable for whole packages and processes. 4. More than 150 customers spread worldwide. (Petrofac, G.S Engineer, Fluor, Hyundai Heavy industry, Kuwait National Oil, Petrobras, PDVSA, Petrol Ecuador, SHELL, etc.) |
FORGING
Forging of this alloy is carried out between 2200/1600ºF (1200/870ºC): heavy forging is carried out in the range 2200/1850ºF (1200/1010ºC).
Chromium carbide precipitation will occur in the temperature range 1400/1000ºF (760/540ºC), thus parts should be cooled rapidly through this temperature range.
WELDABILITY
The alloy may be welded by all processes. The alloy supplier should be consulted for a guide to electrodes and filler metals to be used. Parts to be welded should be clean and joint designs should be such that a minimum of stress may be set up during welding.
Our advangtage
1) Raw material use 100% material steel
2) Good service
3) Competive price
4) Fast delivery
5)High quality products
Packaging & Shipping
| Packaging: | In wooded cases , pallets or according to clients' requirements |
| Shipping: | Tianjin port, Shanghai port and the other main ports in China |
